ISO 9001 Sourced SAE 52100 Chrome Steel

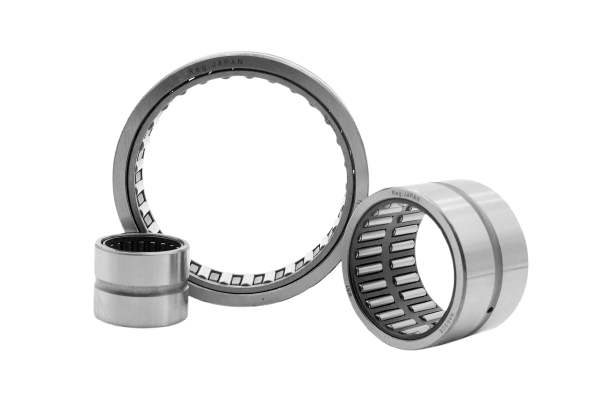

Needle Roller Bearings

Thin cylindrical rollers providing maximum load capacity in minimal radial space for automotive, hydraulic pump, and compact gearbox applications.

Needle Roller Bearings
Standard & Custom Sizes In Stock
Speed Boundary Up to 24,000 RPM
Load Capacity High Radial Space-Saving
Protection Drawn Cup / Solid Ring
Fit & Clearance Inner Ring Optional
Engineering Data Sheet

Technical Specifications & Sizing Chart

Standard metric dimensional chart and load parameters. Filter by model, bore (d), outer diameter (D), or width (B).

Bearing Model Bore (d) Outer Dia (D) Width (C) Dynamic Load (Cr) Static Load (Cor) Limiting Speed (Grease) Needle Roller Length
HK 0808 8 mm 12 mm 8 mm 3.5 kN 3.8 kN 24,000 RPM Compact shell
HK 1010 10 mm 14 mm 10 mm 4.8 kN 5.6 kN 22,000 RPM Compact shell
HK 1210 12 mm 18 mm 10 mm 6.1 kN 7.2 kN 20,000 RPM Compact shell
HK 1512 15 mm 21 mm 12 mm 7.8 kN 9.8 kN 17,000 RPM Compact shell
HK 2016 20 mm 26 mm 16 mm 12.8 kN 18.6 kN 13,000 RPM Compact shell
NA 4902 15 mm 28 mm 13 mm 11.2 kN 14.0 kN 16,000 RPM Solid Machined
NA 4904 20 mm 37 mm 17 mm 19.5 kN 24.5 kN 13,000 RPM Solid Machined
NA 4906 30 mm 47 mm 18 mm 24.8 kN 36.5 kN 10,000 RPM Solid Machined
Showing 1 to 8 of 8 items
Page 1 of 1

Compact Power for Tight Radial Envelope Applications

Needle Roller Bearings utilize long, thin cylindrical rollers whose length is 3 to 10 times their diameter, delivering ultra-compact radial profiles with remarkable radial load ratings.

Available as drawn cup needle roller bearings, heavy-duty machined ring bearings, and cage/needle roller assemblies.

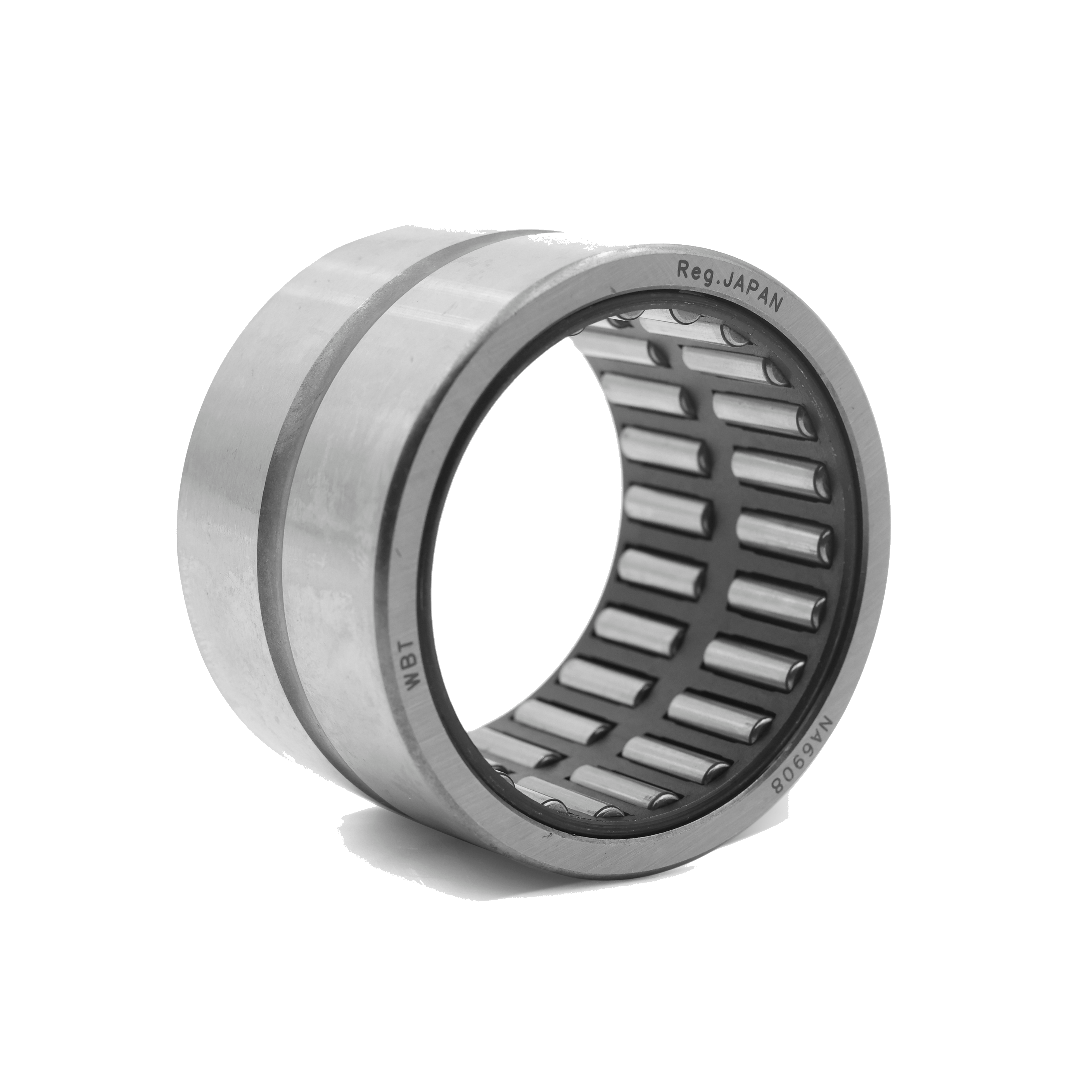

Needle Roller Bearings Category
Engineering Insights

Bearing Nomenclature & Clearance Guide

Understanding technical suffixes, clearance prefixes, and material ratings used in industrial procurement.

Suffix & Prefix Reference

  • 2RS / DDU: Double lip synthetic NBR rubber seals for moisture & dust exclusion.
  • ZZ / 2Z: Double pressed-steel non-contact shields for grease retention at high speeds.
  • K / N: Tapered bore (K) or snap ring groove (N) for specific mounting configurations.
  • M / Y: Machined brass cage (M) or pressed steel cage (Y) for heavy industrial loads.

Radial Internal Clearance (RIC)

  • C2 (Tight): Less than normal clearance. Used for high-precision shafts to minimize vibration.
  • CN (Normal): Standard fit for general industrial applications under normal temperatures.
  • C3 (Loose): Greater than normal clearance. Compensates for thermal expansion in electric motors.
  • C4 / C5: Massive internal space for kilns and gearboxes running at extreme temperatures.
Ready to Order?

Get an Instant Quote on Needle Roller Bearings

Looking for bulk industrial pricing, custom clearance, or emergency machine breakdown stock? Our engineering sales team responds within 15 minutes.
